Control Products

ABB program is already among the most extensive in the market and we are constantly adding new products in order to meet ever changing customer needs.

Quality and reliability are built into every device to ensure total performance satisfaction, even in the most demanding applications.

We offer a very modern and competitive range of contactors, softstarters, starters, limit switches, manual motor starters, a wide range of electronic relays and overload relays, together with an extended program of pilot devices, PLCs and wireless devices.

Contactors and Overload Relays are suitable for a large variety of applications in building and in industry such as motor control, heating and ventilating, air conditioning, pumping, lifting equipment, lighting, process power factor correction, etc,

The range comprises 4 and 5.5 kW mini-contactors, block contactors up to 560 kW (AC3), installation contactors for domestics and industrial use, bar-mounted contactors, thermal and electronics overload relays, and a wide range of add-on accessories ensuring flexibility and adaptability to customer specifications.

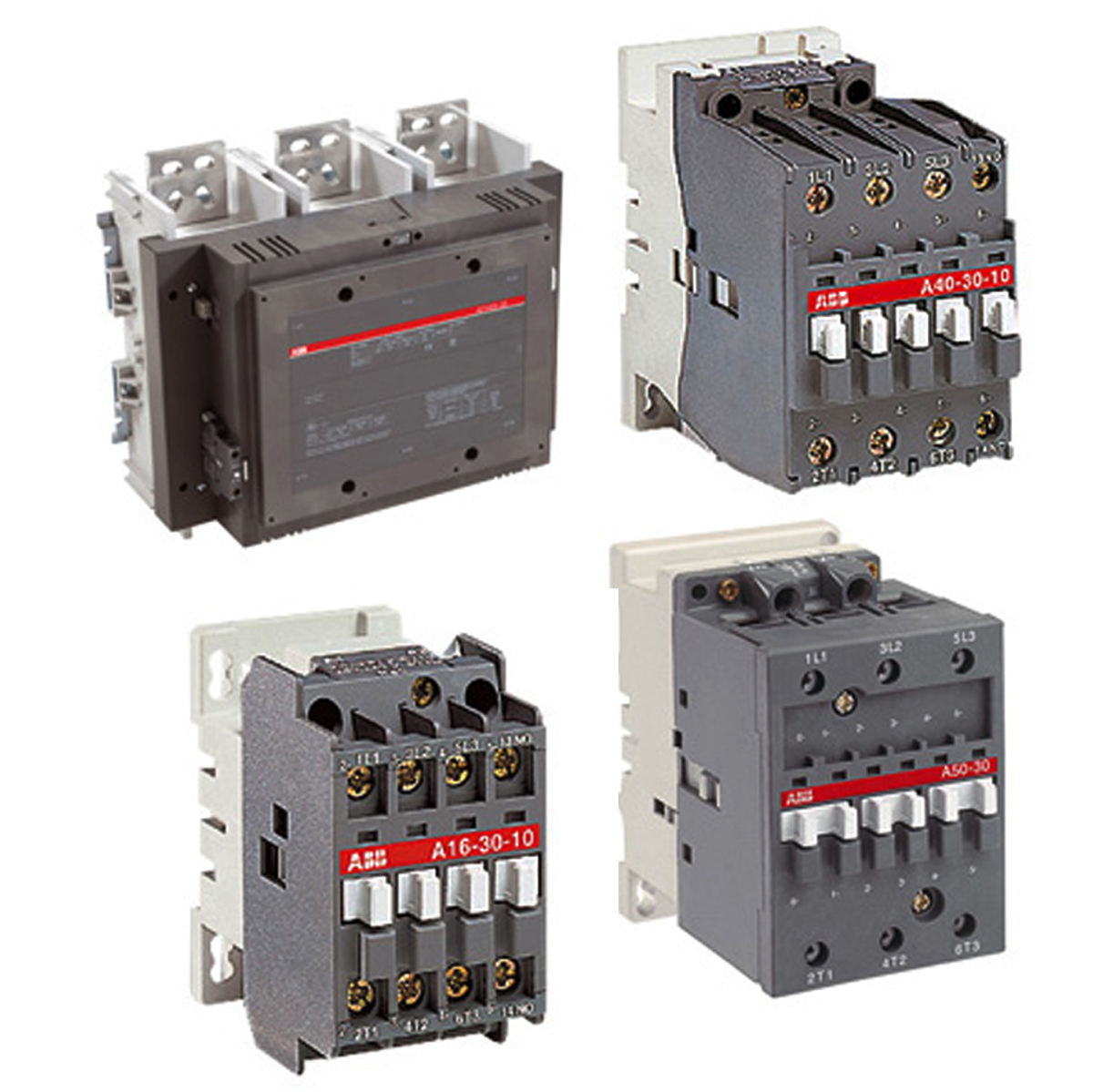

Magnetic Contactors

Block Contactors

The A-line contactor range has the same design from 9A to 1050A (AC3 duty) motor loads and is developed for a broad range of DC and other AC applications. This makes it easier to match your needs with fewer components.

This product has benefited of the latest research in electrical design and component layout incorporating the most recent developments in safety aspects, materials and electronics.

This range offers a total system concept. The A-Line together with ABB's fuse, fuse less short circuit protections, and electronic overload relays provide the basis for a new generation of apparatus designed to an ABB-Line system community. Our focus is to provide designers, engineers, installers and end users with the best possible system solutions.

  • ABB - Line - a system concept
  • Designed for easy and safe installation and maintenance
  • Easy to integrate with other system components,
  • Compact design.
  • A complete range of accessories
  • Complies with the latest international as well as national standards
  • Improved environmental performance

Overload relay

Electronic Overload Relay

Electronic overload relays are the alternative to thermal overload relays. An electronic overload relay offers reliable and fast protection for motors in the event of overload or phase failure. Starter combinations are setup together with block contactors and mini contactors.

ABB offers one of the widest electronic overload relay assortments on the market.

Characteristics of electronic overload relays range

  • Trip class 10E, 20E, 30E selectable
  • Self-supplied
  • Manual or automatic reset selectable
  • Trip-free mechanism
  • Phase loss sensitivity acc. to IEC/EN60947-4-1
  • 2 electrically isolated auxiliary contacts – 1 NO + NC
  • Test and STOP function
  • Trip indication on the front
  • Temperature compensation
  • Ambient air temperature - operation: -25°C … +70°C
  • All terminal screws are accessible from the front
  • EF range: Sealable cover for operating elements

Available Accessories

  • Separate mounting*
  • Busbar kits *
  • Terminal shrouds*

Example of Application

Being easy to use like a thermal overload relay and compatible with standard motor applications, an electronic overload relay is convincing, above all, due to its broad setting range and low power consumption. The overload relays are connected directly to the contactors.

E16DU E45DU E80DU E140DU E200DU

E320DU E500DU E800DU EF19 EF45DU


Suitable for Block Contactor A9 ... A40 A30 ... A40 A50 ... A75 A95, A110 A145, A185
  AL9 ... AL40 AL30 ... AL40 AE50 ... AE75 AE95, AE110 AF145, AF185
      AF50 ... AF75 AF95, AF110
Electronic Overload Relay E16DU E45DU E80DU E140DU E200DU
Suitable for Block Contactor A210 ... A300 AF400, AF580, AF1350,
  AF210 ... AF300 AF460 AF750 AF1650
Electronic Overload Relay E320DU E500DU E800DU E1250DU
Suitable for Block Contactor AF09 ... AF26 AF26, AF38
Electronic Overload Relay EF19 EF45
Suitable for Block Contactor B6/BC6 VB6/VBC6
  B7/BC7 VB7/VBC7
Electronic Overload Relay E16DU E16DU
Thermal Overload Relays

Thermal overload relays are economic electromechanical protection devices for the main circuit. They offer reliable protection for motors in the event of overload or phase failure. Starter combinations are setup together with block contactors and mini contactors.

The thermal overload relays are three pole relays with bimetal tripping elements. The motor current flows through the bimetal tripping elements and heats them directly and indirectly. In case of an overload (over current), the bimetal elements bent as a result of the heating. This leads to a release of the relay and a change of the contacts switching position (95-96 / 97-98).

Characteristics of thermal overload relays: TF range

  • Trip class 10
  • Ambient air temperature - operation: -25°C … +60°C
  • Sealable cover for operating elements

Characteristics of thermal overload relays: T16 range

  • Trip class 10
  • Ambient air temperature - operation: -25°C … +60°C

Characteristics of thermal overload relays: TA…DU range

  • Trip class 10A
  • Special version with trip class 20 or 30*
  • Ambient air temperature - operation: -25°C … +55°C
  • Special versions, suitable for protection of EEX e motors*

General characteristics of thermal overload relays

  • Manual or automatic reset selectable
  • Trip-free mechanism
  • Phase loss sensitivity acc. to IEC/EN60947-4-1
  • 2 electrically isolated auxiliary contacts – 1 NO + 1 NC
  • Test and STOP function
  • Trip indication on the front
  • Temperature compensation
  • Useable for AC- or DC-application*
  • Suitable for three- and single-phase applications
  • All phase are equipped with bimetal tripping elements
  • All terminal screws are accessible from the front

Available accessories

  • Single mounting kit*
  • Busbar kits *
  • Terminal shrouds*
  • Remote trip and remote reset *

Product Range

TA25DU TA42DU TA80DU TA110DU TA200DU


TF42


Suitable for Block Contactor A9 ... A40 A30 ... A40 A50 ... A75 A95, A110 A145, A185 A210 ... A300
  AL9 ... AL40 AL30 ... AL40 AE50 ... AE75 AE95, AE110 AF145, AF185 AF210 ... AF300
      AF50 ... AF75 AF95, AF110
Thermal Overload Relay TA25DU TA42DU TA75DU TA80DU TA200DU TA450DU
        TA110DU   TA450SU
Suitable for Block Contactor AF09 ... AF38
Thermal Overload Relay TF42
Suitable for Block B6/BC6 VB6/VBC6
Mini Contactor B7/BC7 VB7/VBC7

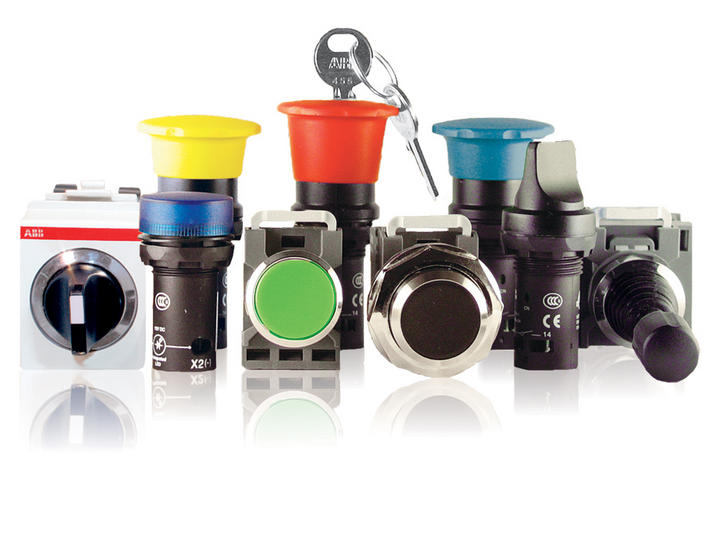

ABB offers 2 ranges of Pilot Devices for 22 mm diameter holes. The products can by use of adaptors also be mounted in 30 mm holes.

The Modular Range includes operators, holders, contact blocks, lamp blocks and LED blocks that can be combined to get the required function. Snap on feature reduces installation time and spring loaded tabs ensure that actuators and legend plates are in correct position.

The Compact Range is a very price competitive alternative with all functions built into one single unit. One order code gives the complete function and the all in one concept makes mounting easy and reduce stock keeping.

A wide range of Accessories make the two ranges of Pilot Devices even more flexible.

In addition to the products above ABB also offers Signal Towers and Signal Beacons.

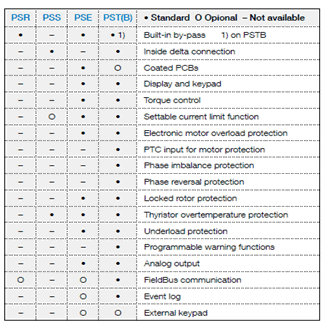

The ABB softstarter portfolio now consists of 4 different ranges making it possible to find a suitable softstarter for almost all pos¬sible applications and motor sizes all the way up to 1800A. The softstarter family consists of the Compact PSR, the Flexible PSS, the Efficient PSE and the Advanced PST(B) range

The range covers all motor applications from 3 A to 1810 A used in a main voltage between 208 V to 690 V AC.

  • PSR - The compact range, 3 to 105 A
  • PSE - The efficient range, 18 to 370 A
  • PSS - The flexible range, 18 to 300 A. (Inside Delta 515 A)
  • PST(B) – The advanced range, 30 to 1050 A. (Inside Delta 1810 A)

PSR — The compact range

The PSR softstarter is the most compact of all the softstarter ranges, thereby making it possible to design compact starting equipments. The system concept with Manual Motor Starters and the PSR provides a far more compact starting solution than for instance a star delta starter.

Built-in by-pass reduces the energy loss and makes the connection easier and with only three potentiometers, the set-up couldn’t be any easier. Still, the optimized ramping characteristics will ensure a very smooth start and stop for all applications.

PSS — The flexible range

The PSS softstarter allows both in line and inside delta connection making it a very flexible option. Just as on the PSR softstarter, the few settings make the set-up very easy. Connecting an external current transformer makes it possible to activate the current limit function, which will allow you to keep the current at a pre-set level also when starting heavy duty applications. The PSS softstarter is the ideal solution when looking for a robust solid state starting solution where many starts per hour are required.

PSE — The efficient range

The PSE softstarter is the world’s first compact softstarter with both built-in electronic overload for motor protection and torque control for an excellent control of pumps. The compact design with the most important functionality integrated provides a very efficient starting solution.

The illuminated language neutral display and the four button keypad make it easy to take advantage of all the advanced functionality in the softstarter. The display will also provide all the necessary information both during ramping and continuous operation.

PST(B) — The advanced range

The PST(B) softstarter is the most advanced softstarter in the range with almost all imaginable functionality included. All the advanced protections for the motor, the softstarter and the load ensure a trouble free operation. Pre-warnings even allow problems to be detected before the motor needs to be stopped and thereby avoiding unnecessary downtime.

The torque control function has been developed and tested together with well known pump manufacturers to ensure the absolutely best possible stop of pumps without water hammering and pressure surges.

With the full text LCD display in your own language, pre-programmed application settings and event logging, it couldn’t be easier to set-up and operate.

By using the ABB FieldBusPlug, you can decide at any time which bus protocol to use. The fieldbus system will allow you to set-up, control and monitor the softstarter.
